P.S. Metallic Heat-Transfer Die-Cut Film Label

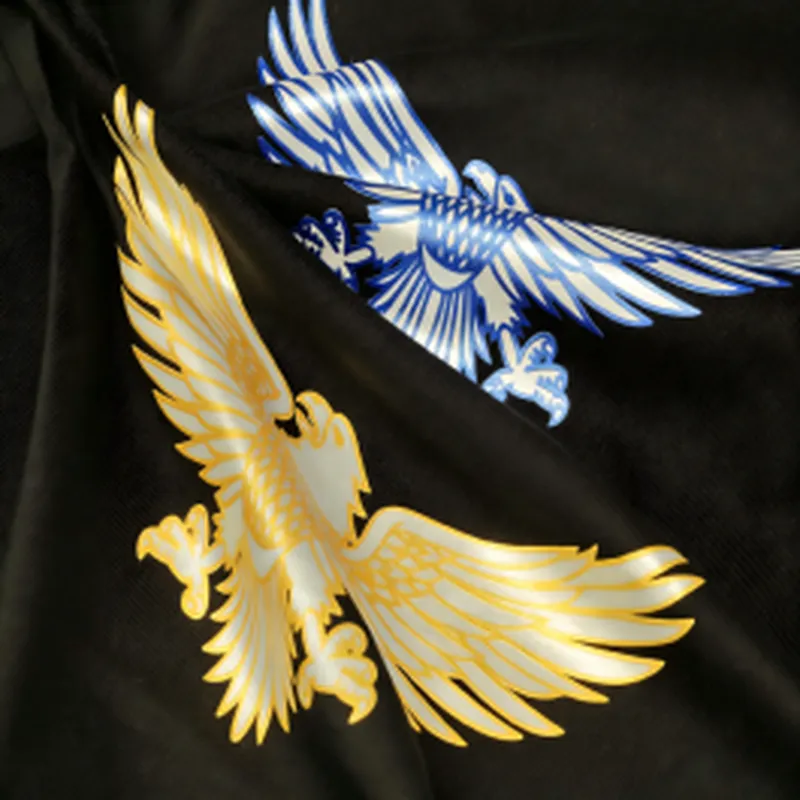

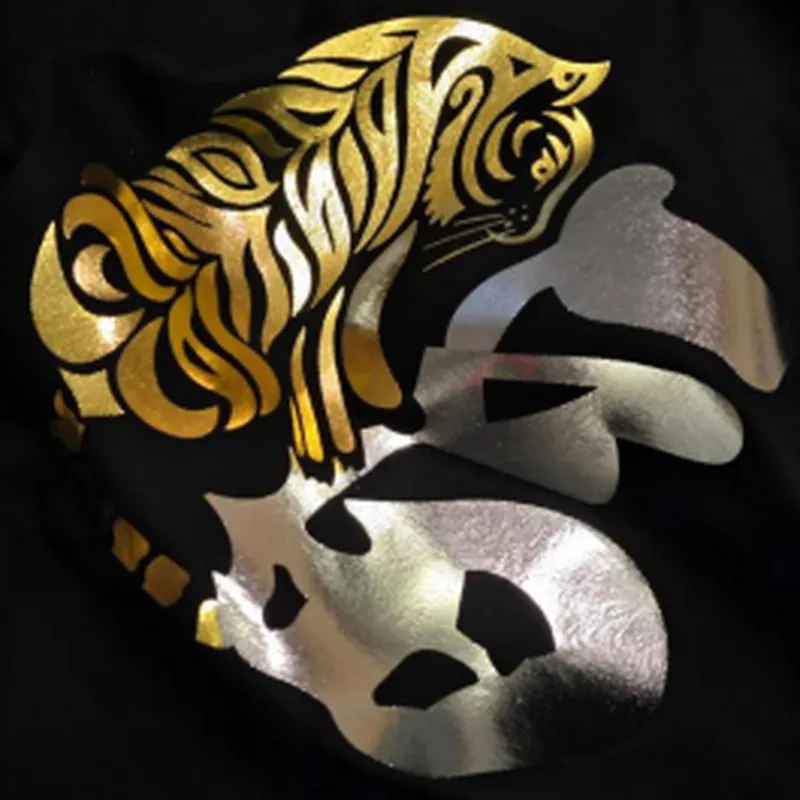

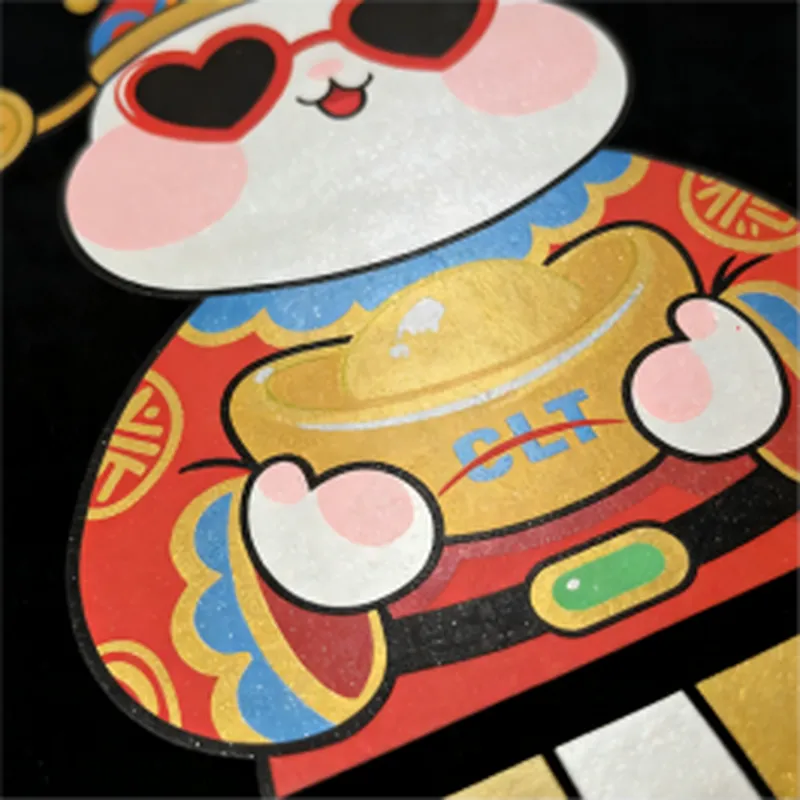

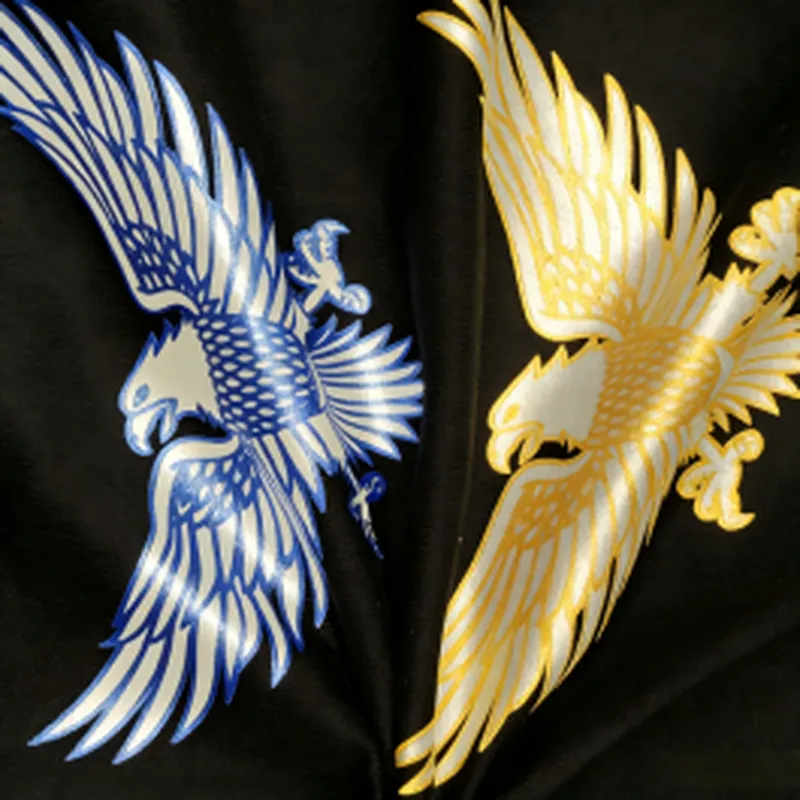

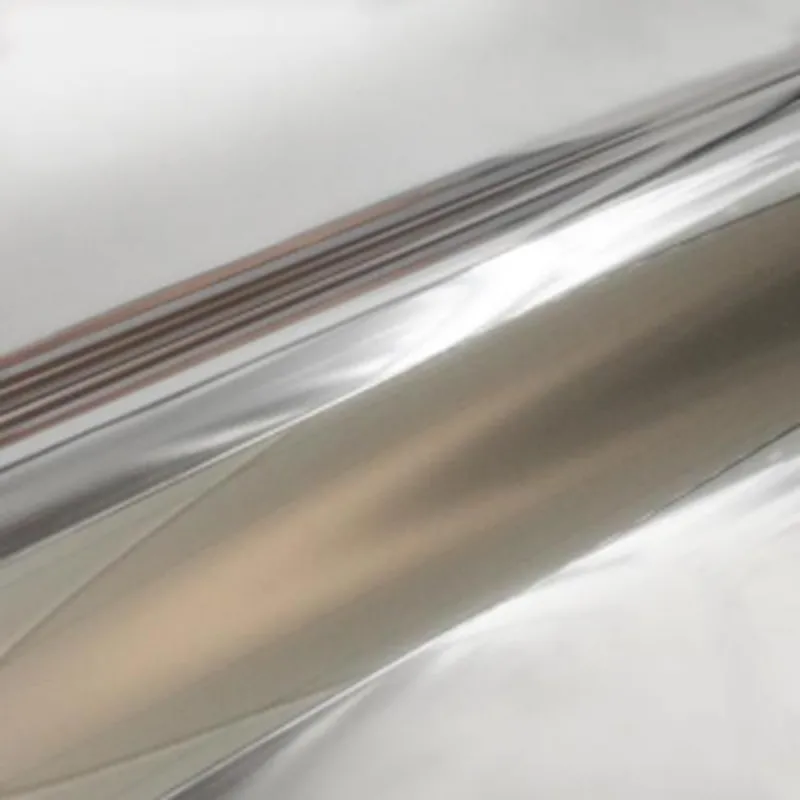

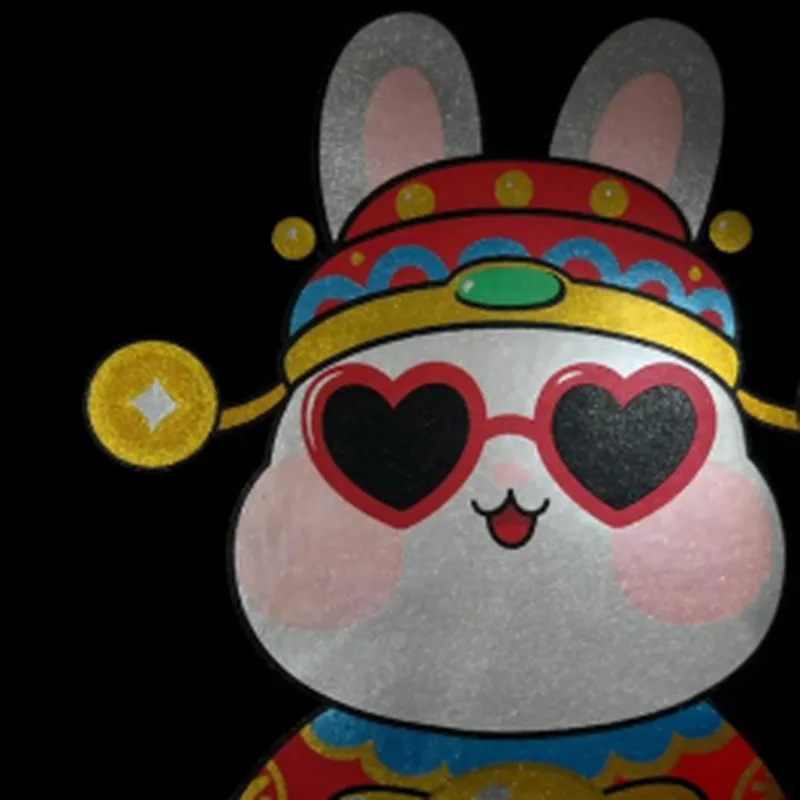

The P.S. Metallic heat-transfer die-cut film label is a metallic texture thermal transfer solution combining high-molecular PU resin and electroplating technology. It essentially forms mirror-like gold and silver metallic luster logos on textile surfaces through precision engraving and hot-melt lamination technology. This product is suitable for scenarios such as sportswear, outdoor equipment, and work uniforms that require prominent brand texture, featuring both metallic visual impact and durability, meeting the technical requirements of the international textile printing industry for high-end metallic transfer materials.
Key Features:
Technical Specifications | P.S. Metallic Heat-Transfer Die-Cut Film
A metallic texture heat-transfer material designed specifically for textiles, achieving permanent metallic logo transfer through precise temperature control and pressure adaptation, suitable for brand logos, sports numbers, functional zoning and other scenarios.
Product Specifications
Process Steps
Step-by-step guide for optimal P.S. Metallic heat-transfer die-cut film results
1. Artwork Design
Receive customer vector format logo files, the technical team adapts the process based on the cutting plotter precision (Roland GS-24 supports 0.1mm fine engraving) and provides color matching suggestions. Note: Ensure vector files are at proper resolution for optimal results.
2. Material Cutting
Use a CNC cutting plotter to cut according to the pattern outline, controlling the cutting depth at 0.1-0.3mm (ensuring only the die-cut film is cut without damaging the release film) to ensure no burrs on the edges. Important: Use appropriate cutting settings to avoid damage to the material.
3. Weeding
Remove excess waste outside the pattern using manual or automated equipment, retaining the complete metallic texture pattern carrier. Warning: Take care not to damage the metallic texture during weeding.
4. Release Positioning
Cover the cut pattern film on the surface of the fabric to be transferred, using positioning scales to ensure the pattern is centered/symmetrical. Note: Ensure accurate positioning for best results.
5. Heat Transfer Lamination
Use a flat heat press machine for pressure lamination according to the set parameters (temperature 135-150°C, time 10-15 seconds, pressure 5-8KG). Important: Follow recommended temperature and pressure parameters for optimal adhesion.
6. Cooling & Peeling
Cool naturally to room temperature (about 3-5 minutes), slowly peel off the release film at a 45° angle to complete the metallic logo transfer. Note: Allow sufficient cooling time for best results.
Key Features P.S. Metallic Heat-Transfer Die-Cut Film
Key Features

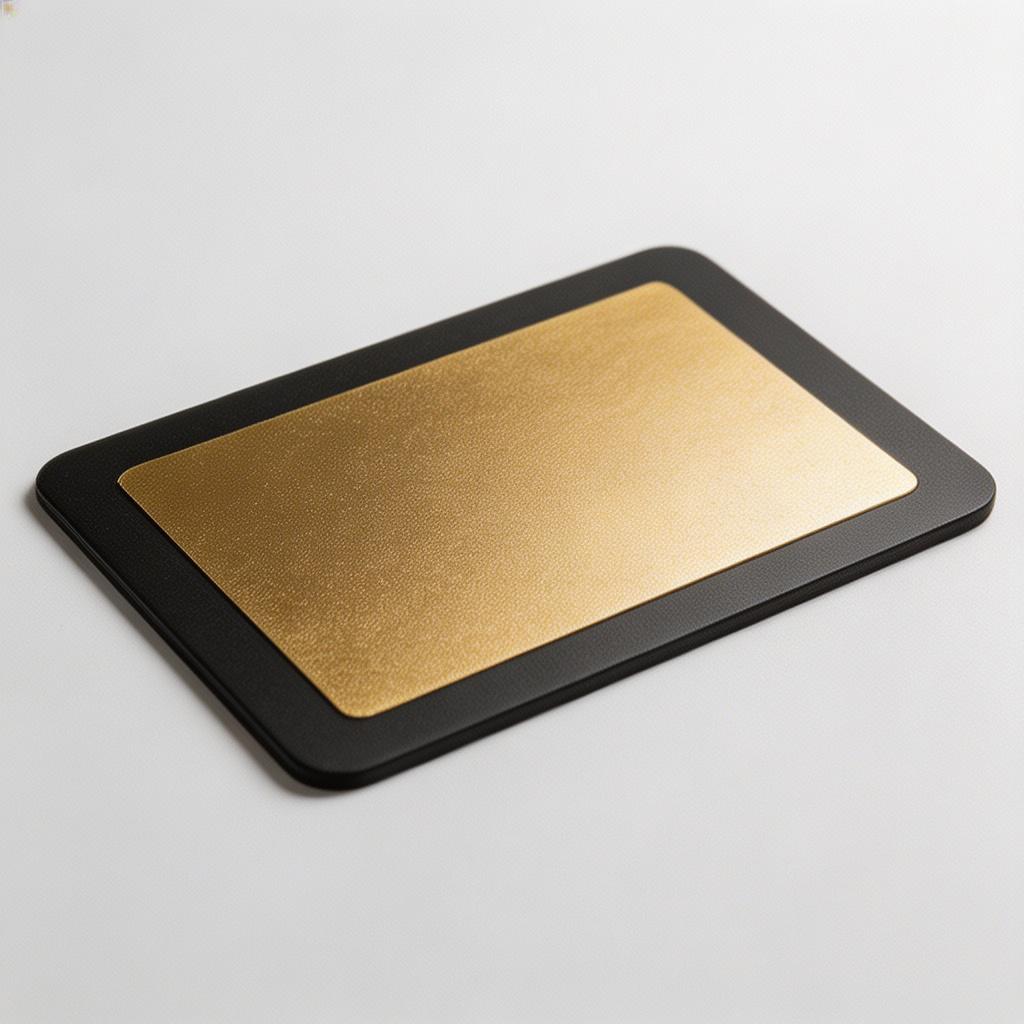

1. High-Fidelity Metallic Texture
Adopting an electroplated layer + PU resin composite structure, restoring mirror-like gold and silver luster, with visual effects comparable to traditional hot stamping process, and no risk of metal foil falling off. Note: Store rolls in a cool, dry place to maintain material quality.

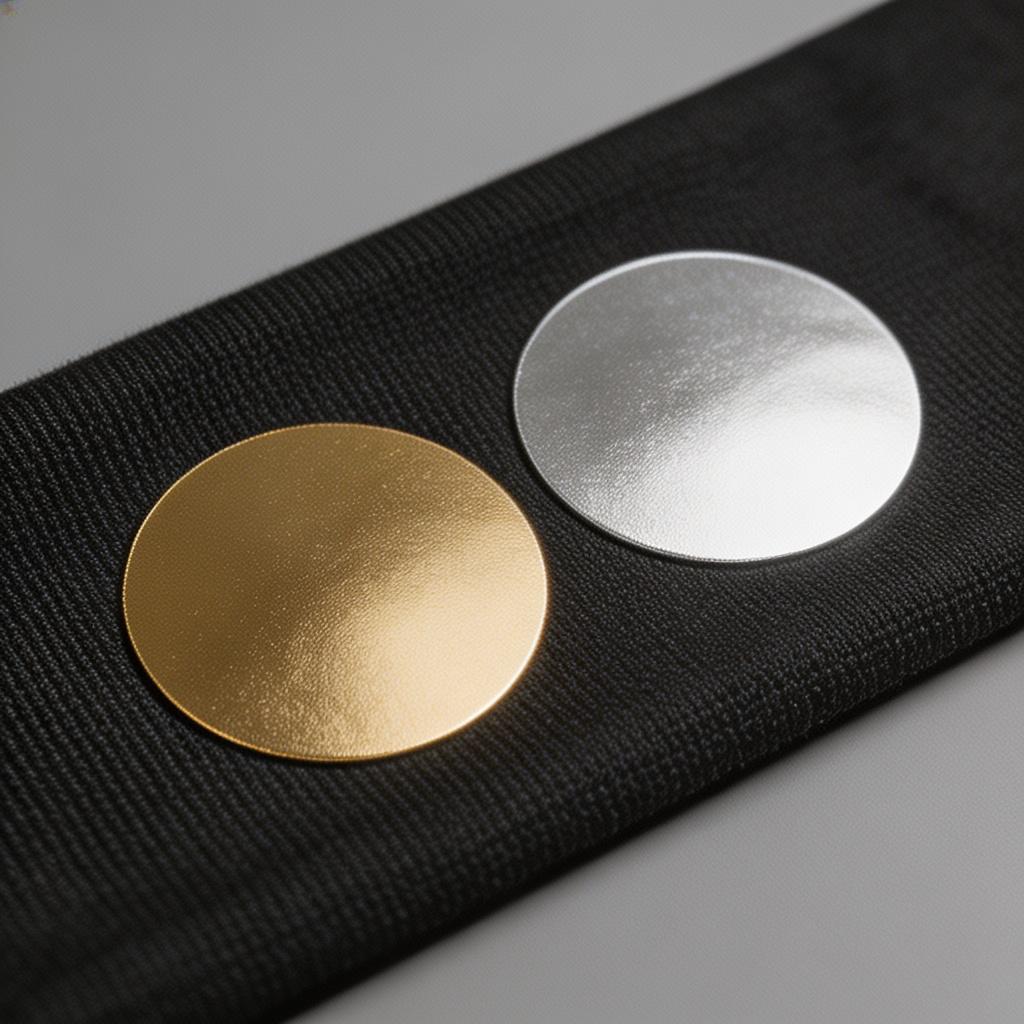

2. Super Durability
Tests show that it maintains stable performance at extreme temperatures from -30°C to 80°C, with friction resistance up to 200 times or more (ISO 105-X12 standard), suitable for high-frequency use scenarios such as outdoor and sports. Important: Follow recommended care instructions to maintain durability.
3. Wide Fabric Compatibility
No fabric pretreatment required, direct transfer to dark and light-colored fabrics, with coverage of over 98%, solving the problem of traditional hot stamping's limitation on background color. Warning: Test on sample fabrics before full production.

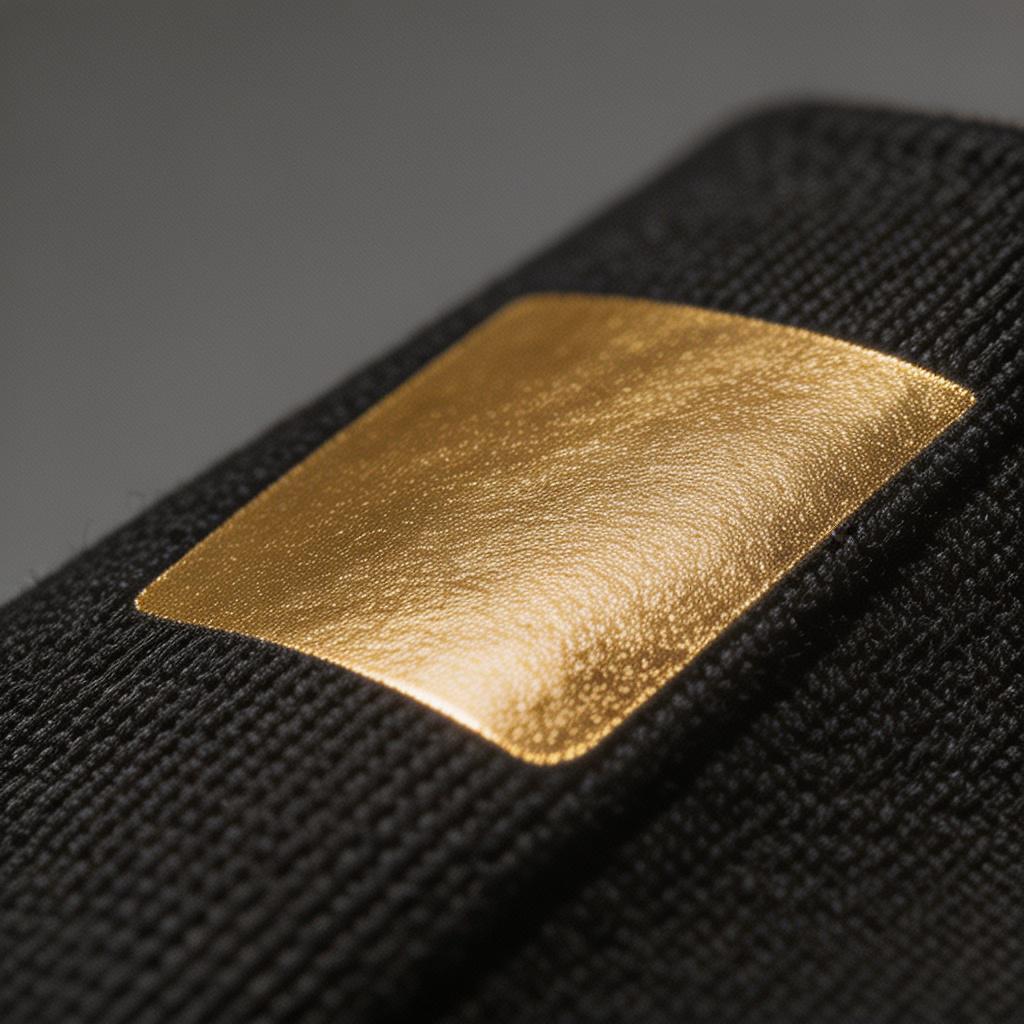

4. Efficient Production Adaptation
Supports batch cutting (a single roll of 50cm×25m can continuously produce 500+ standard logos), simple transfer process, with a daily output of 2000 pieces per person. Tip: Use professional cutting plotters for optimal efficiency.
5. Compliance & Safety
Passed the EU REACH regulation 197 SVHCs test, meets children's clothing safety standards, and can be used for logo production of children's clothing and baby clothing. Note: Ensure proper storage to maintain material quality.
Application Scenarios | Where P.S. Metallic Heat-Transfer Die-Cut Film Creates ROI
These scenarios emphasize sellable outcomes—metallic visual impact, durability, and brand differentiation—without overloading operators with unnecessary technical details.

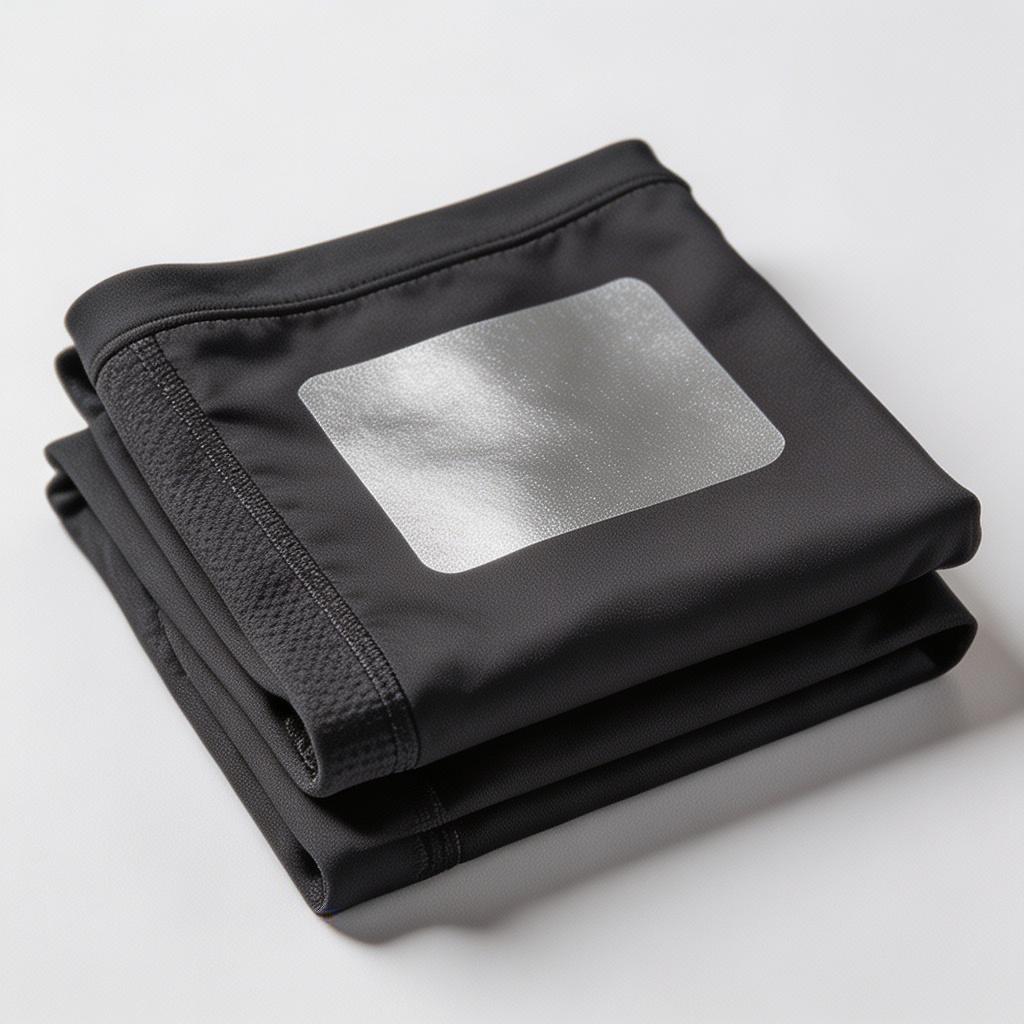

Sportswear Field
Transfer of team logos and numbers on football jerseys and basketball uniforms (such as gold numbers on away jerseys of Premier League teams), reflective metallic logos on cycling clothing (used in combination with reflective die-cut film). Tip: Use for team logos, player numbers, and sports apparel.

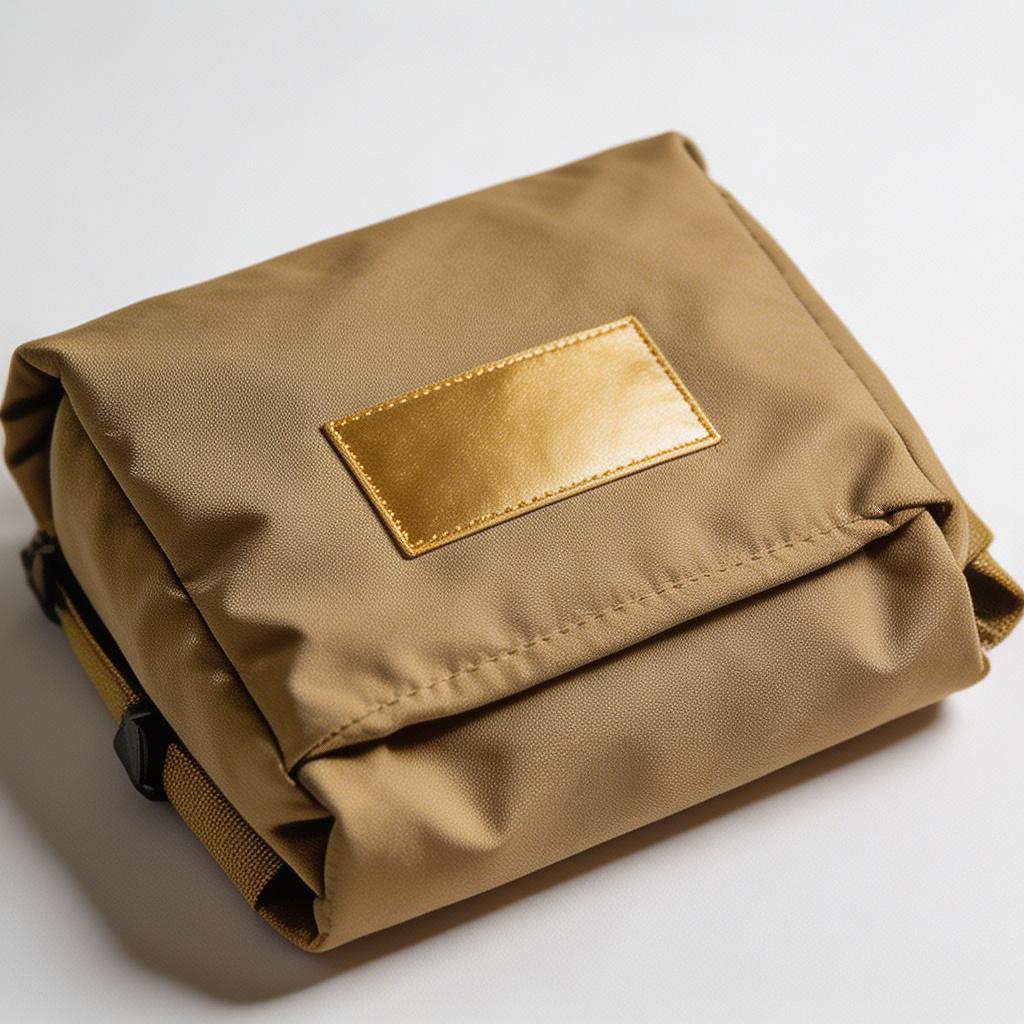

Outdoor Equipment Field
Metallic brand logos on mountaineering backpacks (friction-resistant, rain-soaked proof), silver logos for functional zoning on tents (high and low temperature resistant). Tip: Use for outdoor gear, backpacks, and camping equipment.

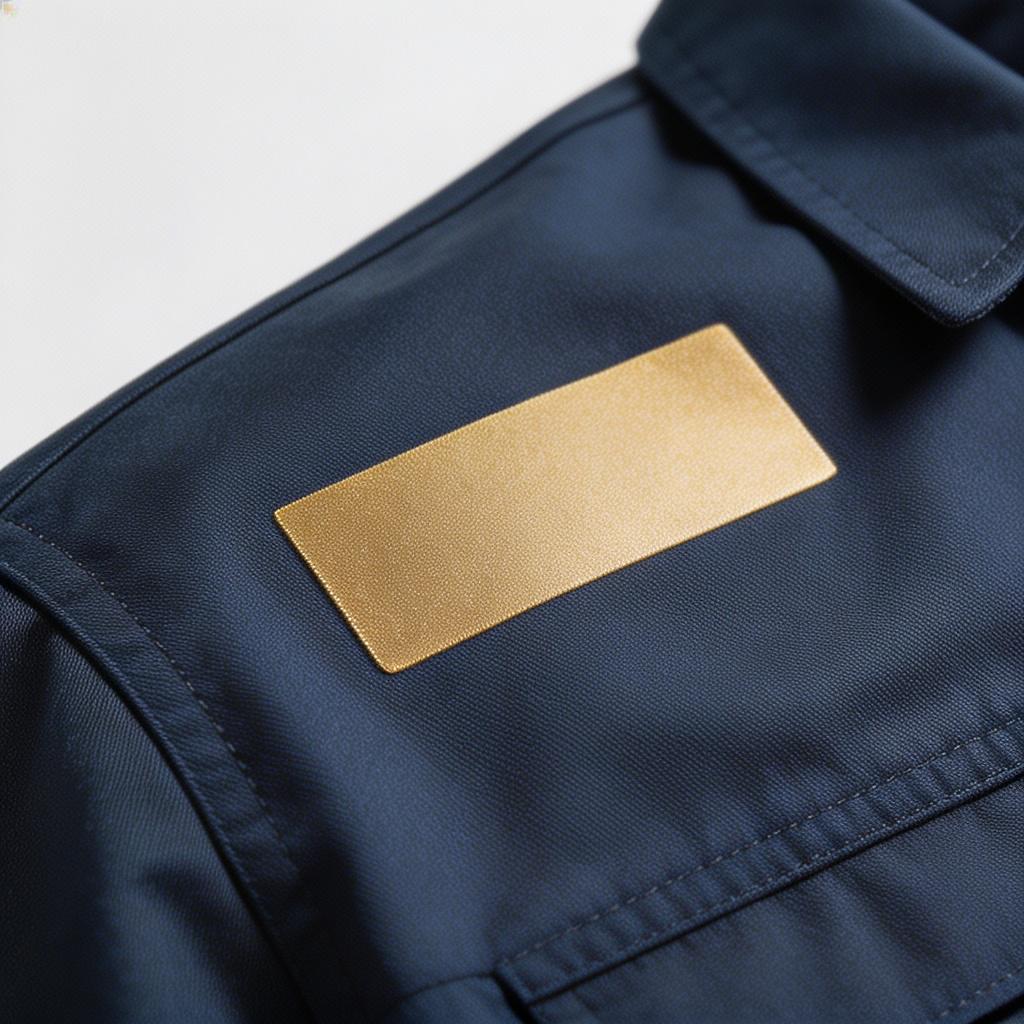

Work Uniform Field
Gold logos on the chest of corporate employee uniforms (enhancing brand recognition), reflective metallic safety logos on sanitation workers' uniforms. Tip: Use for corporate uniforms and safety workwear.

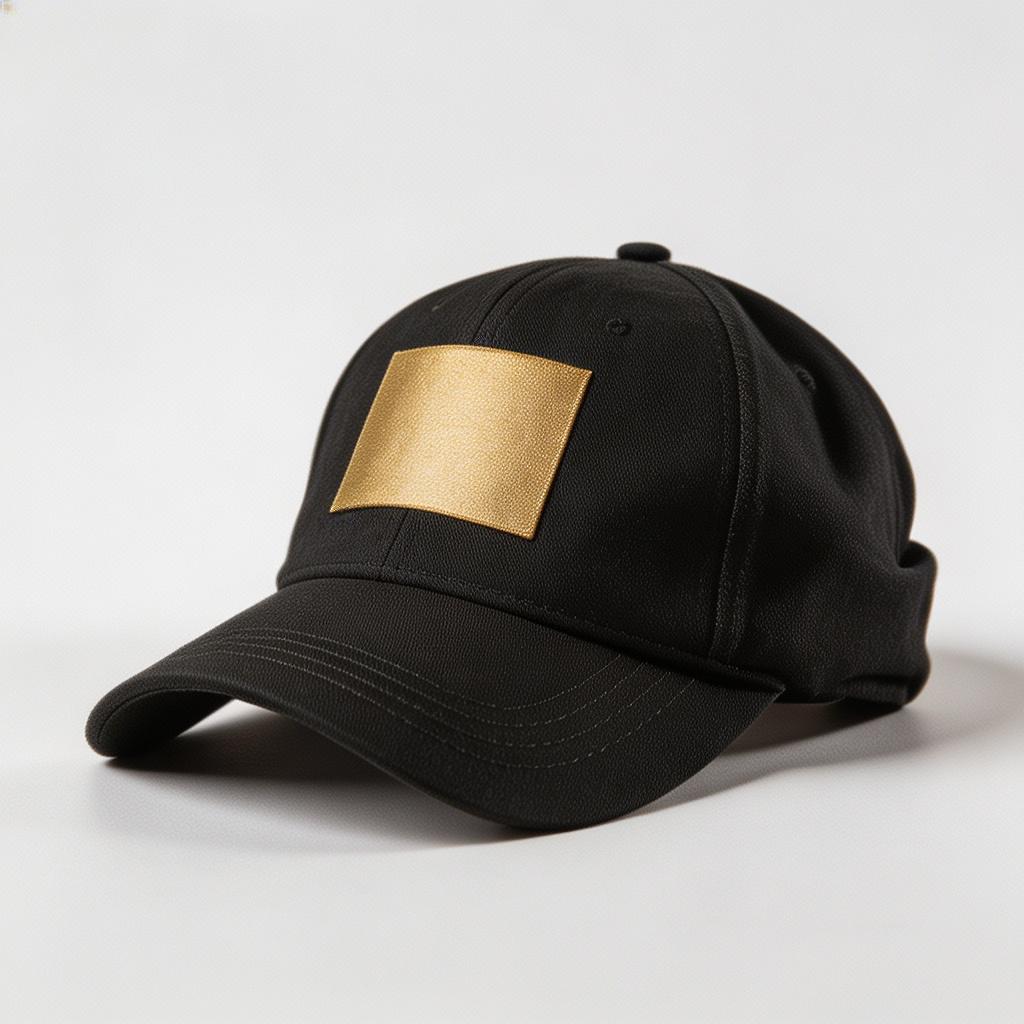

Fashion Apparel Field
Decorative silver patterns on denim jackets, gold brand abbreviations on the side of baseball caps, metallic texture logos on handbags. Tip: Use for fashion apparel, denim wear, and accessories.
Gift Customization Field
Metallic logos on the surface of ceramic cups and glass crafts (adapting to 120-165°C transfer of mug heat press machines), brand logos on stainless steel thermos cups. Tip: Use for personalized gifts and promotional items.
