Gloss Screen Printing Silicone

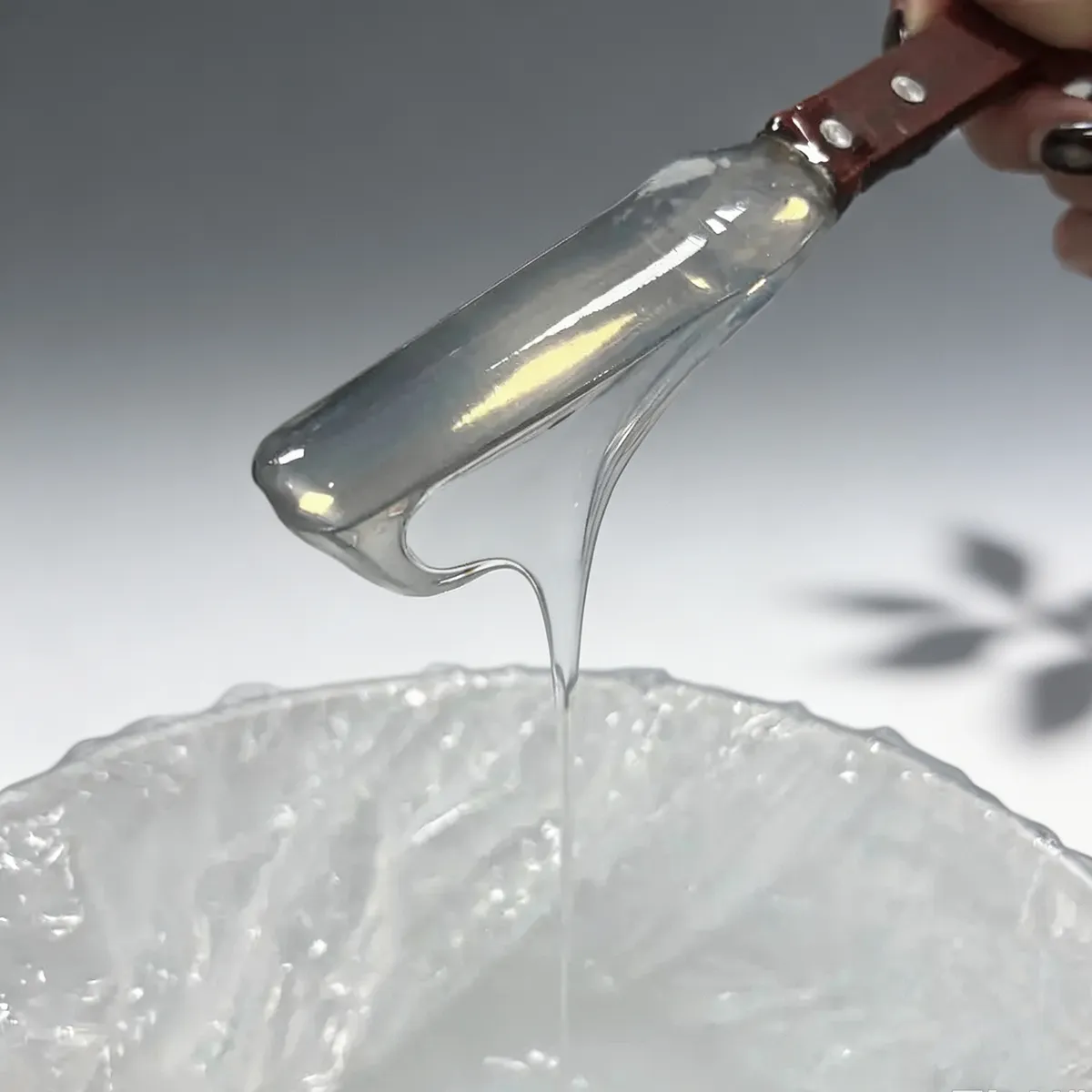

CLT S1704L is a gloss silicone engineered for super glossy effect with dry & clean surface and soft hand feel. Features good flowability and can be mixed with any kinds of silicone. Can also be used as thinner.
Key Features:
Technical Specifications | Gloss Screen Printing Silicone
Complete technical specifications for CLT S1704L gloss screen printing silicone.
Product Specifications
Ready to Get Started?
For a free technical consultation, quote, samples, and custom specifications on Materials for Silicone Screen-Printed Film, contact us—no obligation.
Eco-Friendly Certifications & Test Results
S1704L meets strict international environmental and safety standards.
Certifications
GB 18401
Chinese textile safety standard
OEKO-TEX 100
International textile safety standard
Adidas A-01
Adidas restricted substances list
Nike RSL
Nike restricted substances list
Harmful Substance Test Results
| Parameter | Value | Standard |
|---|---|---|
| Formaldehyde | ND | OEKO-TEX 100 |
| Soluble Heavy Metals | ND | EN71-3 |
| AZO Dyes | ND | OEKO-TEX 100 |
| APEO | ND | OEKO-TEX 100 |
| Phthalates | ND | OEKO-TEX 100 |
Finished Product Performance
Test results for printed fabric using S1704L gloss screen printing silicone.
Test Conditions
Fabric
Stretch Lycra
Printing Method
Machine printing
Curing Condition
135°C * 90s
Performance Metrics
Softness
4 Grade
5 Grade Scale (5=Super Soft, 1=Stiff)
Elasticity
4 Grade
5 Grade Scale (5=Very Good, 1=Worse)
Glossiness
Gross
Visual test
Machine Wash Fastness
Pass
5 wash cycles at 60°C
Dry Rubbing Fastness
5 Grade
1-5 Scale
Wet Rubbing Fastness
5 Grade
1-5 Scale
Formulation & Auxiliaries
Recommended formulation and optional auxiliary agents for S1704L paste.
Auxiliary Agents
G-010 Fixer
Usage
2-4%
Purpose
Cross-linking and curing
Notes
Mix evenly and use within 4-8 hours.
G-1100 Thinner
Usage
5-15%
Purpose
Adjust paste viscosity
Notes
Use as needed for desired consistency. Can also be used as thinner for other silicones.
Storage & Shelf Life
Proper storage conditions ensure optimal performance and extended shelf life of S1704L paste.
Storage Conditions
Temperature
5-35°C
Humidity
Keep in cool and ventilated place
Sealing
Well sealed containers
Shelf Life
12 months from manufacturing date
Important Warnings
- ⚠Keep away from direct sunlight and heat sources
- ⚠Avoid freezing - do not store below 5°C
- ⚠Store in sealed, airtight containers
- ⚠Maintain proper ventilation in storage area
- ⚠Only surface dry for each printing pass - total drying may cause layering and separation
- ⚠Keep environment relatively dust-free to avoid particles on printing surface
Printing Guide | Gloss Screen Printing Silicone
Detailed printing instructions and technical parameters for optimal results with S1704L paste.
Printing Conditions
| Humidity | 50-80% |
| Temperature | Room temperature |
| Squeegee Hardness | 65-75 (solvent-based) |
| Mesh Count | 100-180 mesh |
| Curing Temperature | 120-140°C |
| Curing Time | 90 seconds |

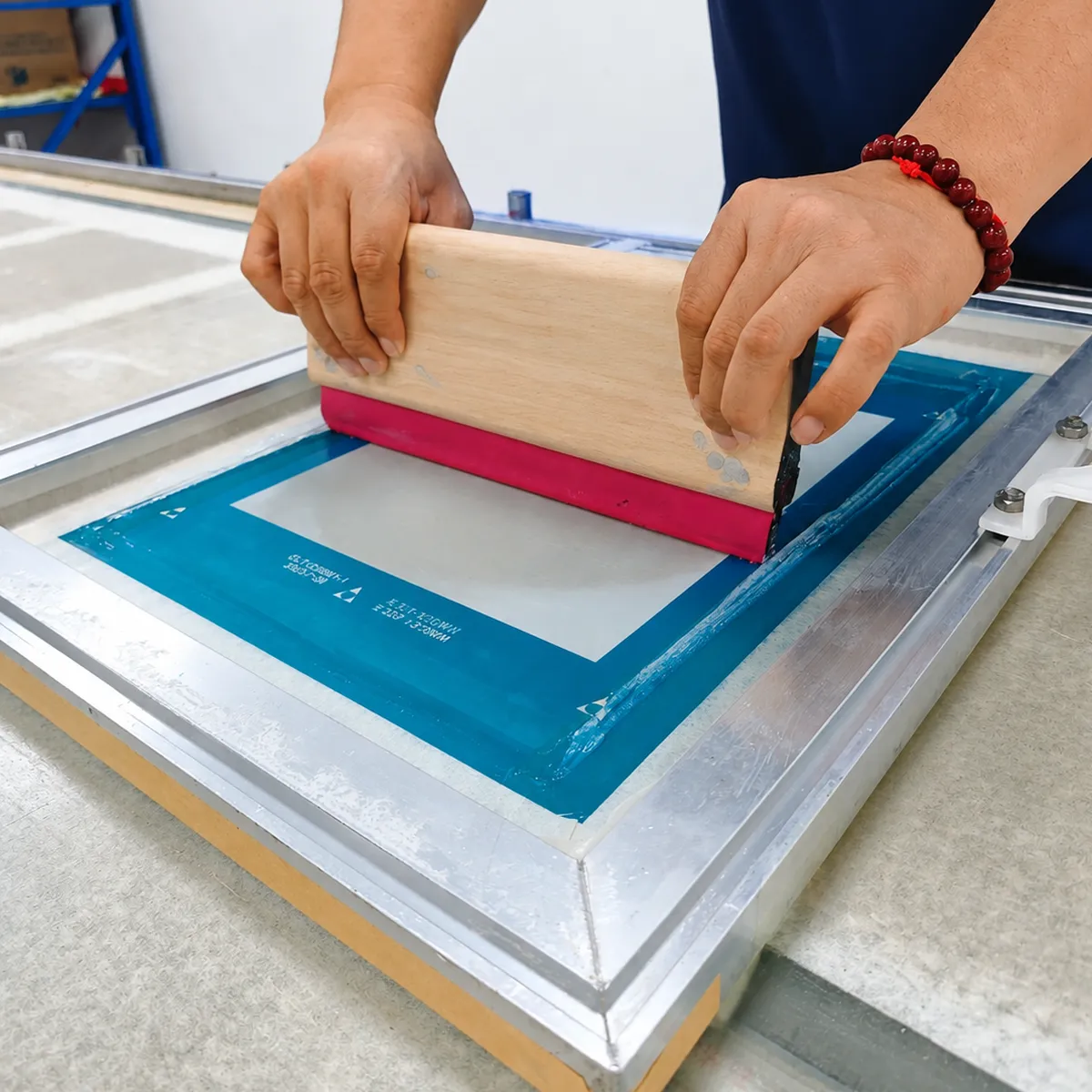

Printing Process
Print S1704L undercoating 2 times with proper squeegee pressure
Allow surface to dry between printing passes
Apply color printing 2 times
Apply surface covering 2 times for glossy finish

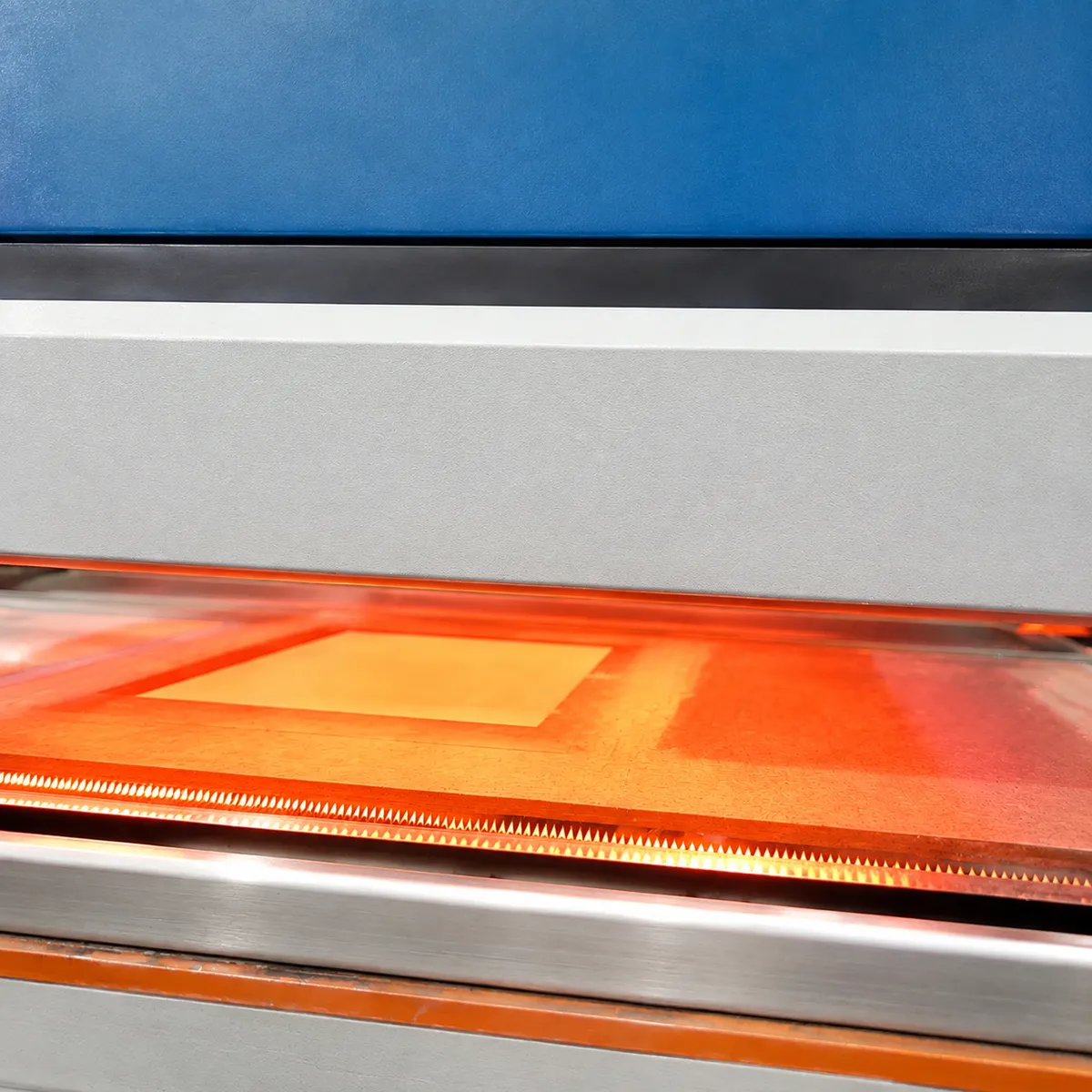

Cure at 120-140°C for 90 seconds for optimal glossy effect
