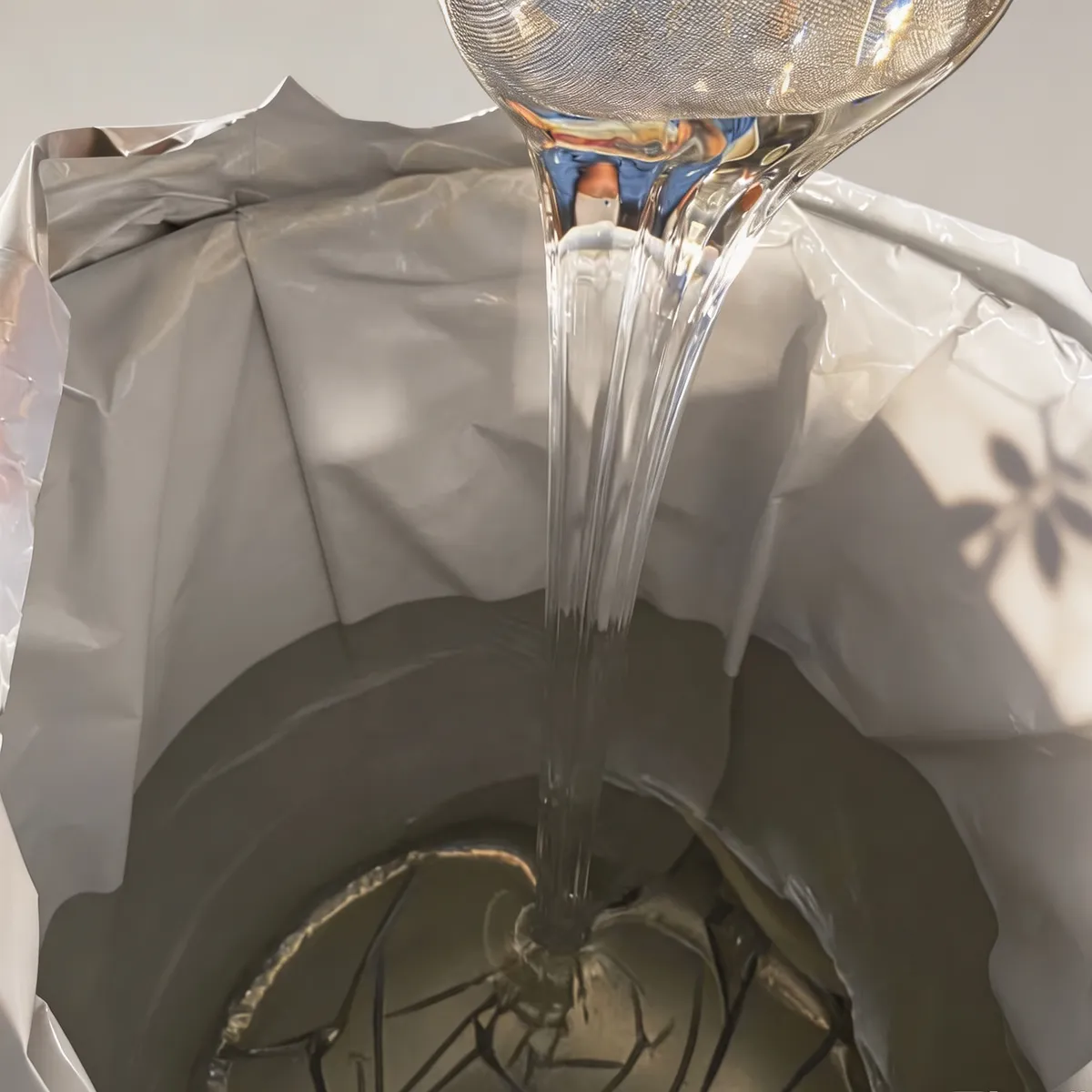

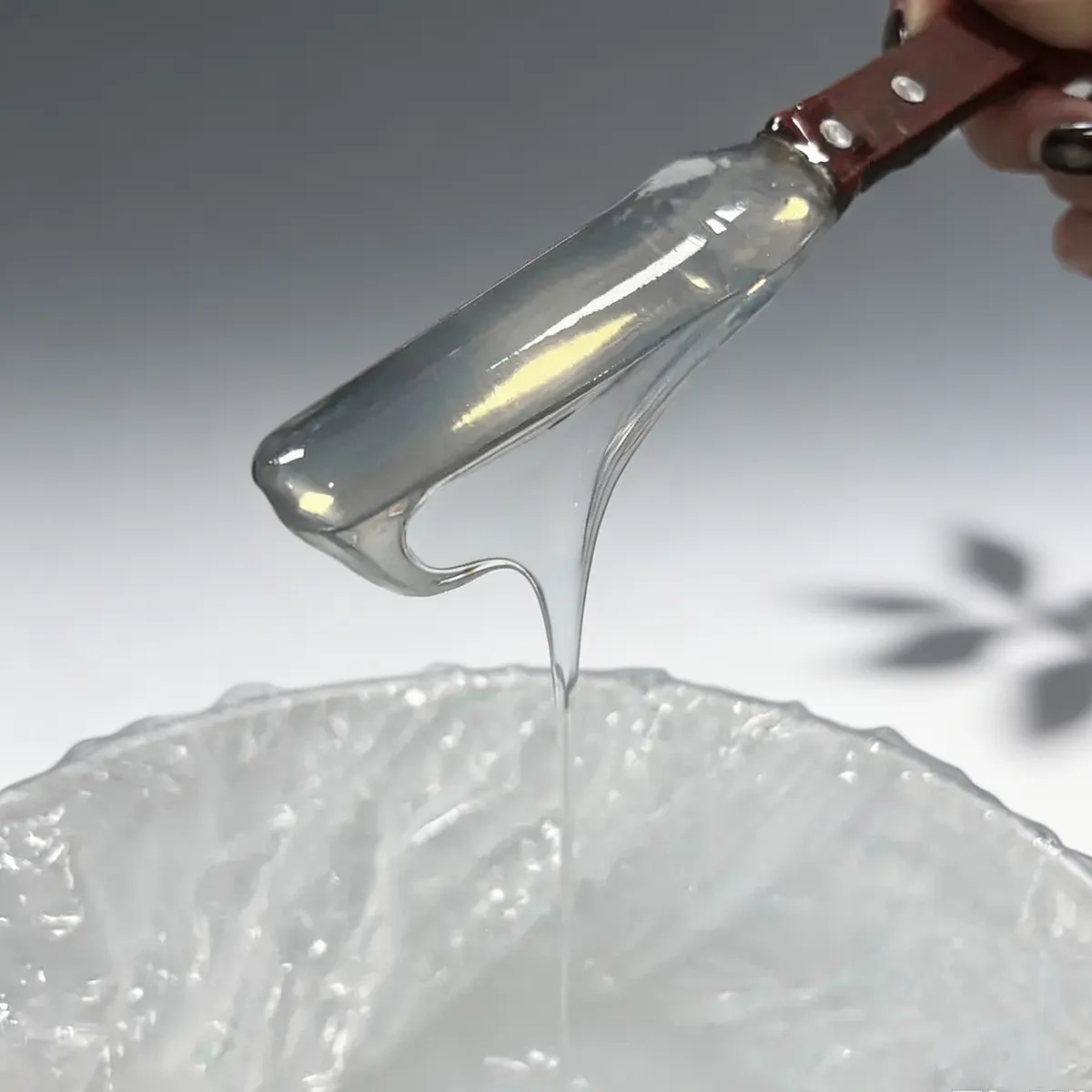

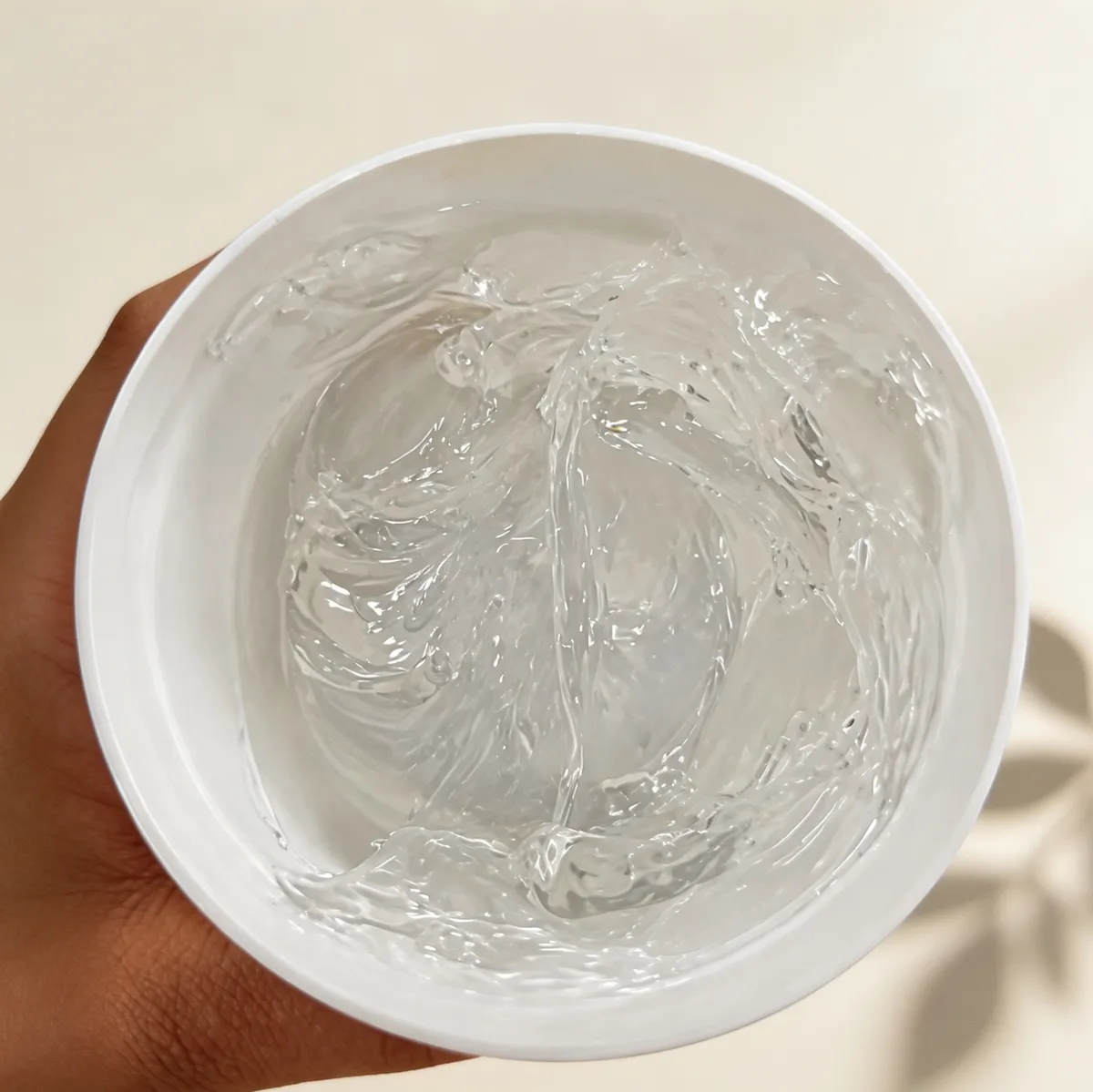

Transition Bridging
CLT S1714A + S1714B is an addition-cure liquid silicone rubber engineered for special applications. Features excellent weatherability, non-toxic and eco-friendly properties, high tensile strength, and high hardness. Specifically formulated for base printing on polyester and nylon-blended fabrics, and as an effective bridging agent in transfer printing processes.
Key Features:
Technical Specifications | Transition Bridging
Complete technical specifications for CLT S1714A + S1714B addition-cure liquid silicone rubber.
Product Specifications
Ready to Get Started?
For a free technical consultation, quote, samples, and custom specifications on Materials for Silicone Screen-Printed Film, contact us—no obligation.
Eco-Friendly Certifications & Test Results
Transition Bridging meets strict international environmental and safety standards.
Certifications
GB 18401
Chinese textile safety standard
OEKO-TEX 100
International textile safety standard
Adidas A-01
Adidas restricted substances list
Nike RSL
Nike restricted substances list
Product Properties
| Parameter | Value | Standard |
|---|---|---|
| Weatherability | Excellent | Professional grade |
| Toxicity | Non-toxic | Eco-friendly |
| Tensile Strength | ≥6 MPa | Professional grade |
| Hardness | 38±3 Shore A | Professional grade |
Performance Characteristics
Performance characteristics of Transition Bridging in printing applications.
Test Conditions
Fabric
Polyester and nylon-blended fabrics
Printing Method
Base printing and transfer printing
Curing Condition
Room temperature curing
Performance Metrics
Tensile Strength
≥6 MPa
Professional grade
Elongation
≥300%
Professional grade
Tear Strength
≥10 kN/m
Professional grade
Weatherability
Excellent
Excellent resistance to weathering and aging
Formulation & Auxiliaries
Recommended formulation and optional auxiliary agents for S1714A + S1714B paste.
Auxiliary Agents
Special-purpose Curing Agent
Usage
8-10%
Purpose
Cross-linking and curing
Notes
Available in various concentrations to shorten or extend drying time.
Colorants
Usage
As needed
Purpose
Add color to silicone
Notes
S1714A + S1714B is formulated to accept colorants.
Storage & Shelf Life
Proper storage conditions ensure optimal performance and extended shelf life of S1714A + S1714B paste.

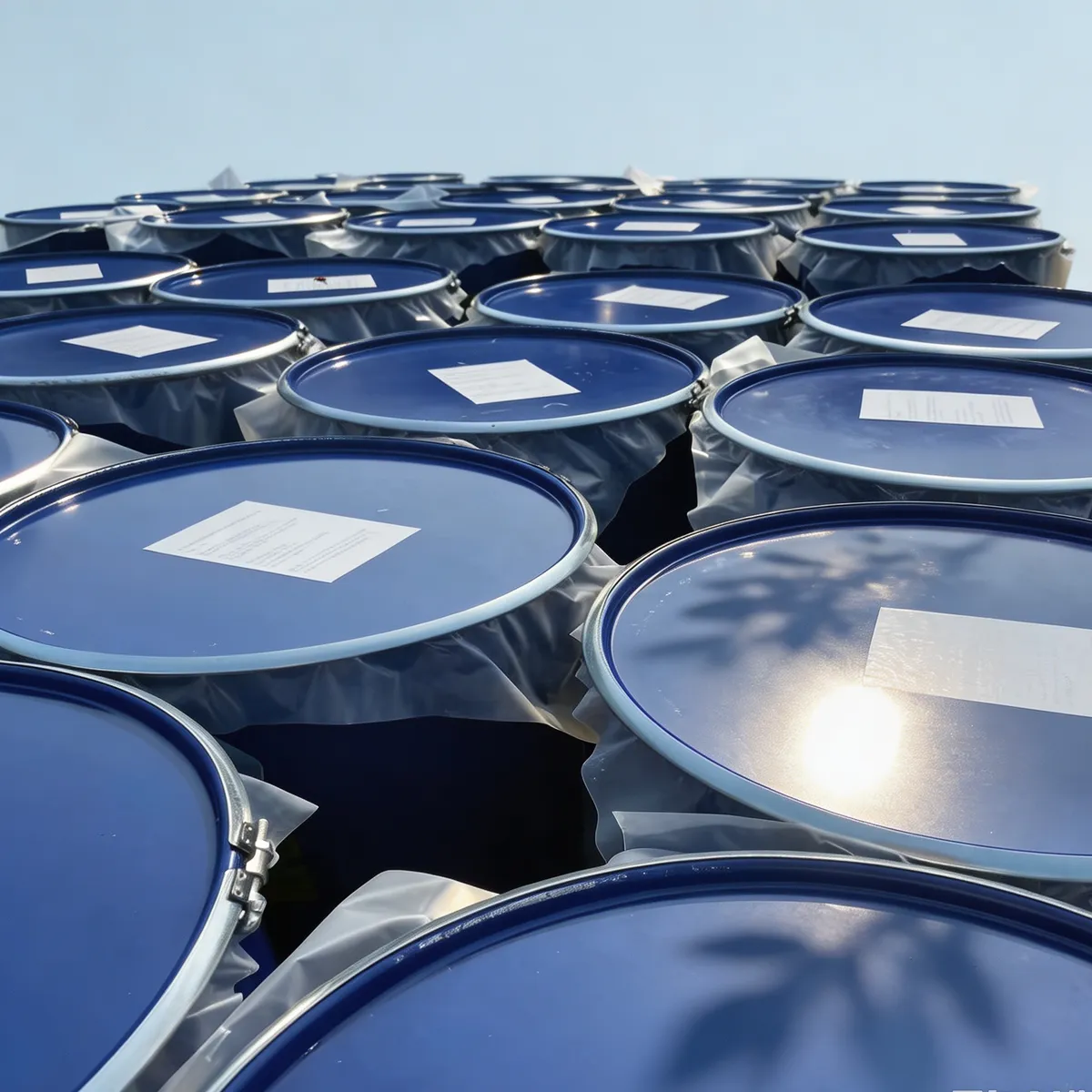

Storage Conditions
Temperature
5-35°C
Humidity
Keep in cool and ventilated place
Sealing
Tightly sealed containers
Shelf Life
12 months from manufacturing date
Important Warnings
- ⚠Keep away from direct sunlight and heat sources
- ⚠Avoid freezing - do not store below 5°C
- ⚠Store in sealed, airtight containers
- ⚠S1714A + S1714B contains cross-linking agent, and curing agents contain catalysts
- ⚠Compatibility test is mandatory when using products from other companies to avoid cross-linking reaction
- ⚠Maintain proper ventilation in storage area
- ⚠Product exceeding designated shelf life may remain usable following successful re-qualification inspection
Application Guide | Transition Bridging
Detailed application instructions and technical parameters for optimal results with S1714A + S1714B paste.
Application Conditions
| Humidity | 50-80% |
| Temperature | Room temperature |
| Curing Agent | 8-10% |
| Mixing Time | Thoroughly mix |
| Working Time | ≥4 hours after mixing |

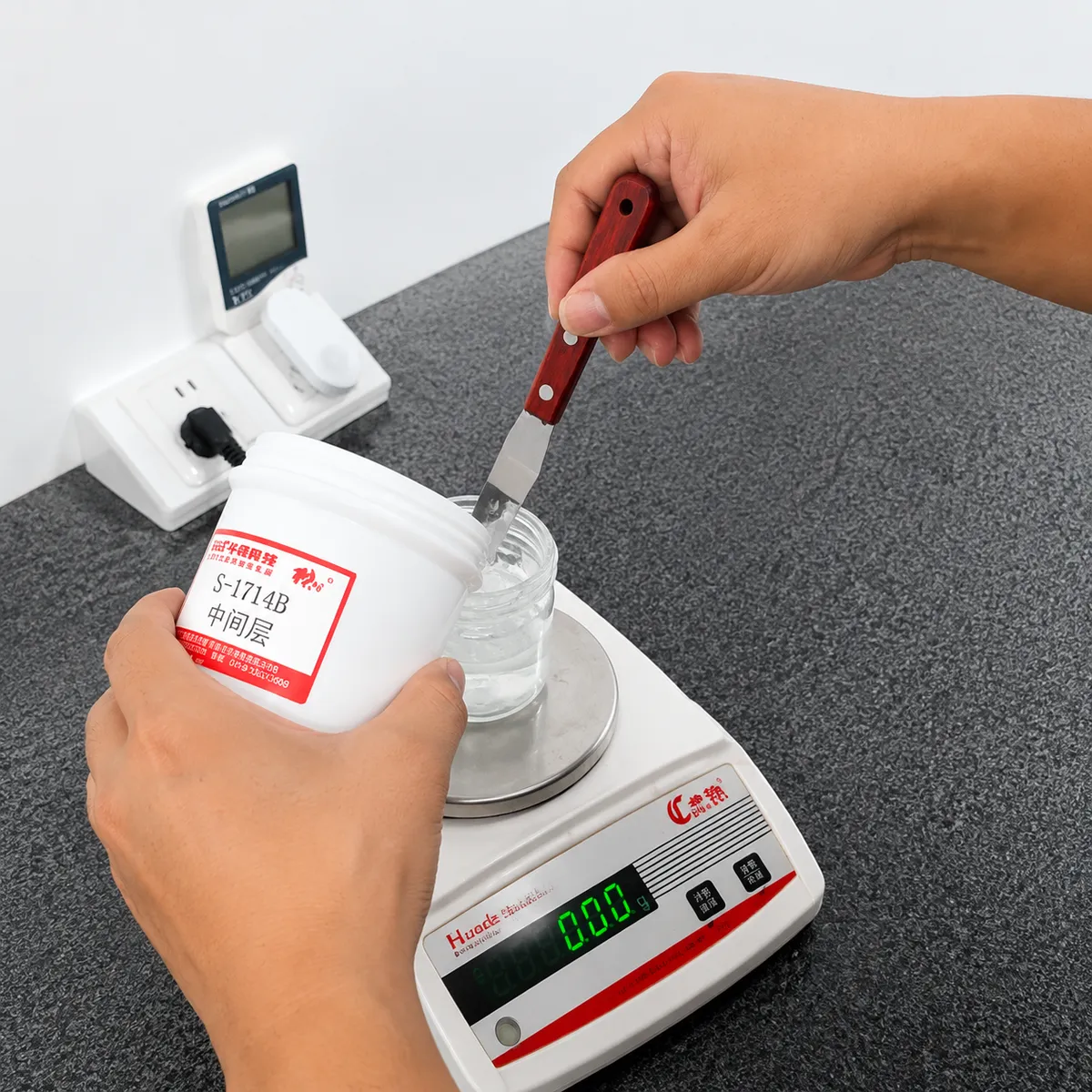

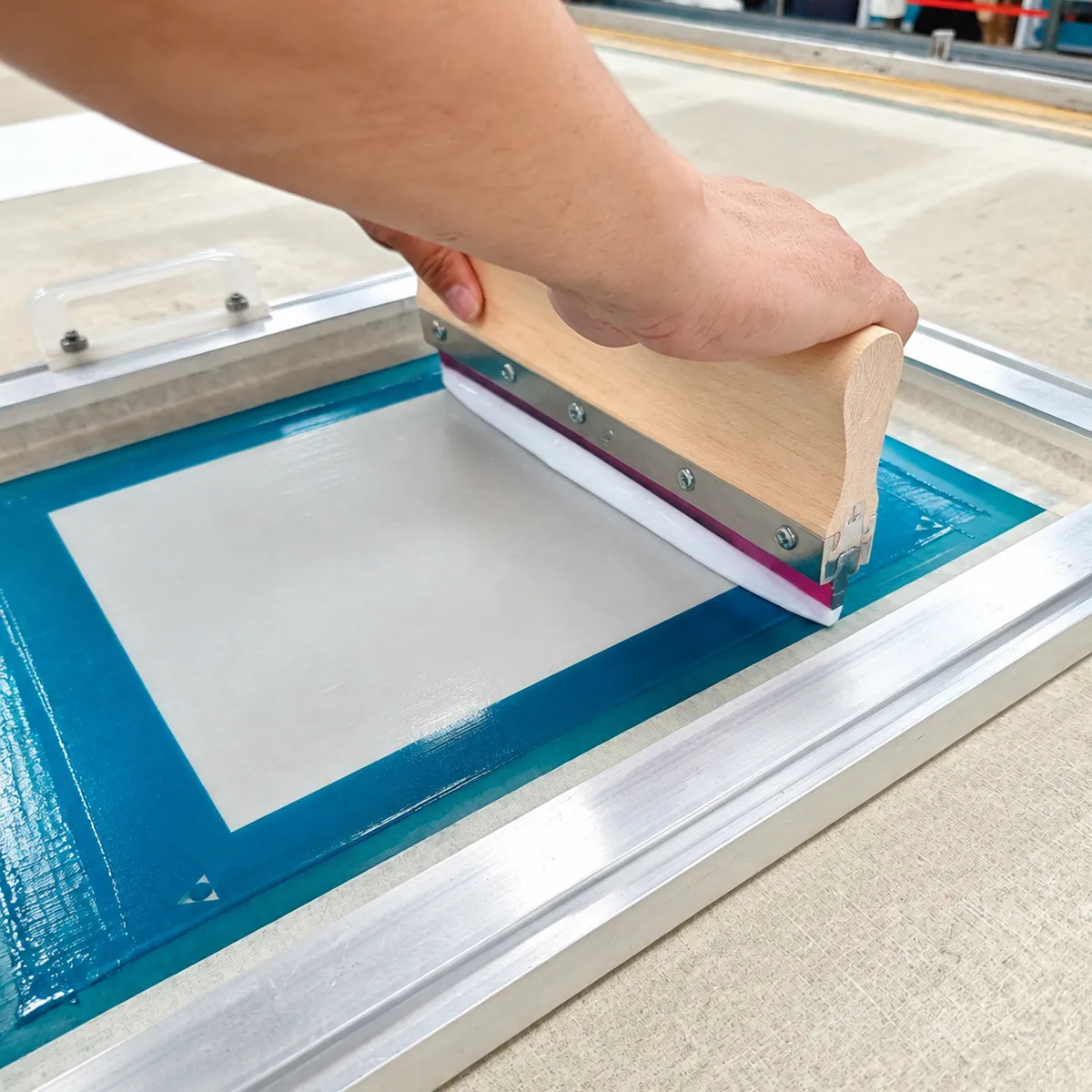

Application Process
Add special-purpose curing agent at 8-10% to S1714A + S1714B
Mix thoroughly and evenly
Use within working time (≥4 hours)
Apply to fabric or use as bridging agent in transfer printing
Related Products
Discover more high-performance industrial garment printing solutions.

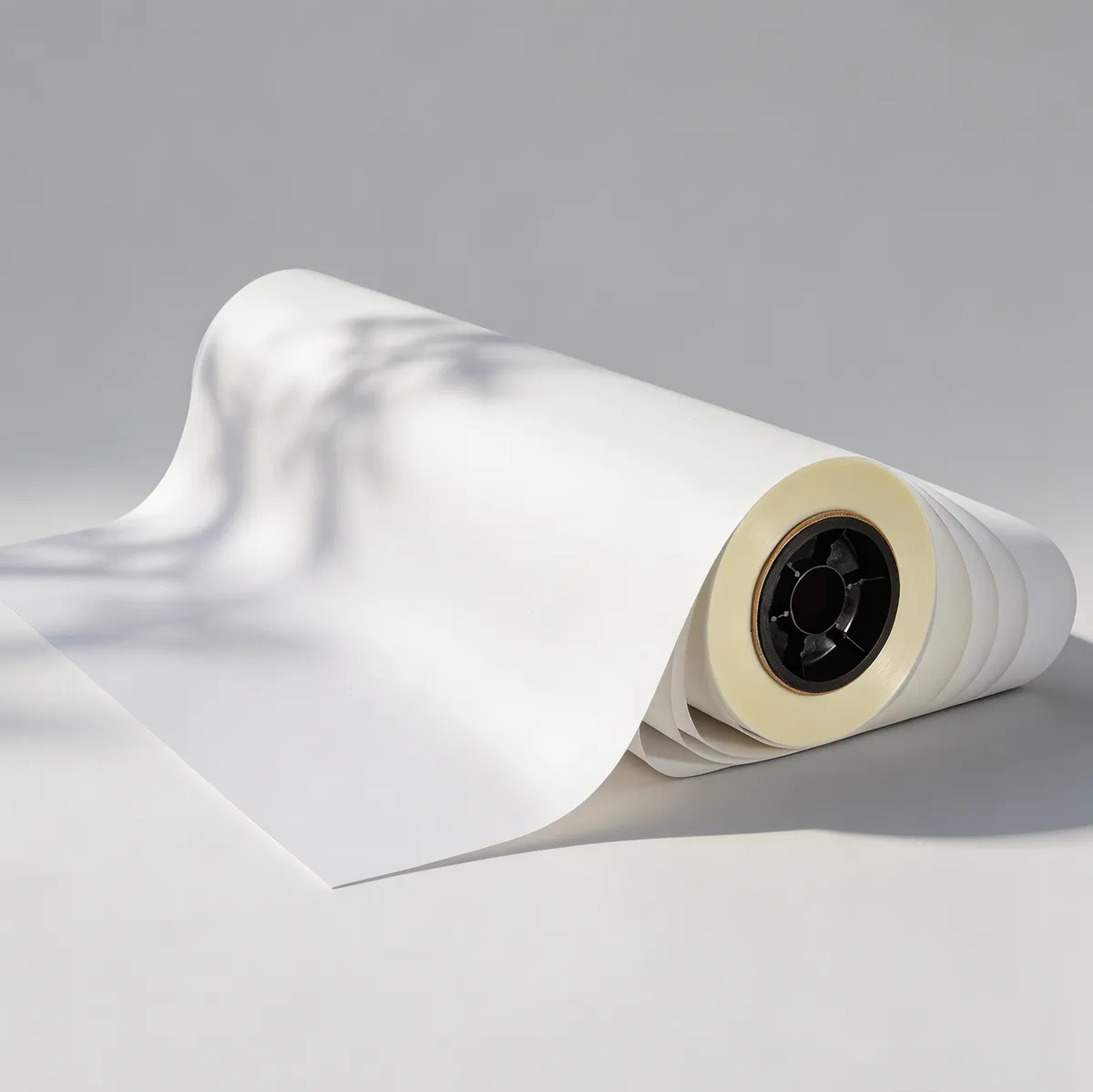

Hot-melt PET release film
Silicone transfer film uses PET as carrier. Silicone is screen printed on the film, then heat transferred onto garments. The transfer has 3D texture, soft touch, good wash and stretch resistance, ideal for apparel logos and decorative patches.
Key Specifications:
-01M0C18A34H0ET61YG8S5V6RBJ.webp)

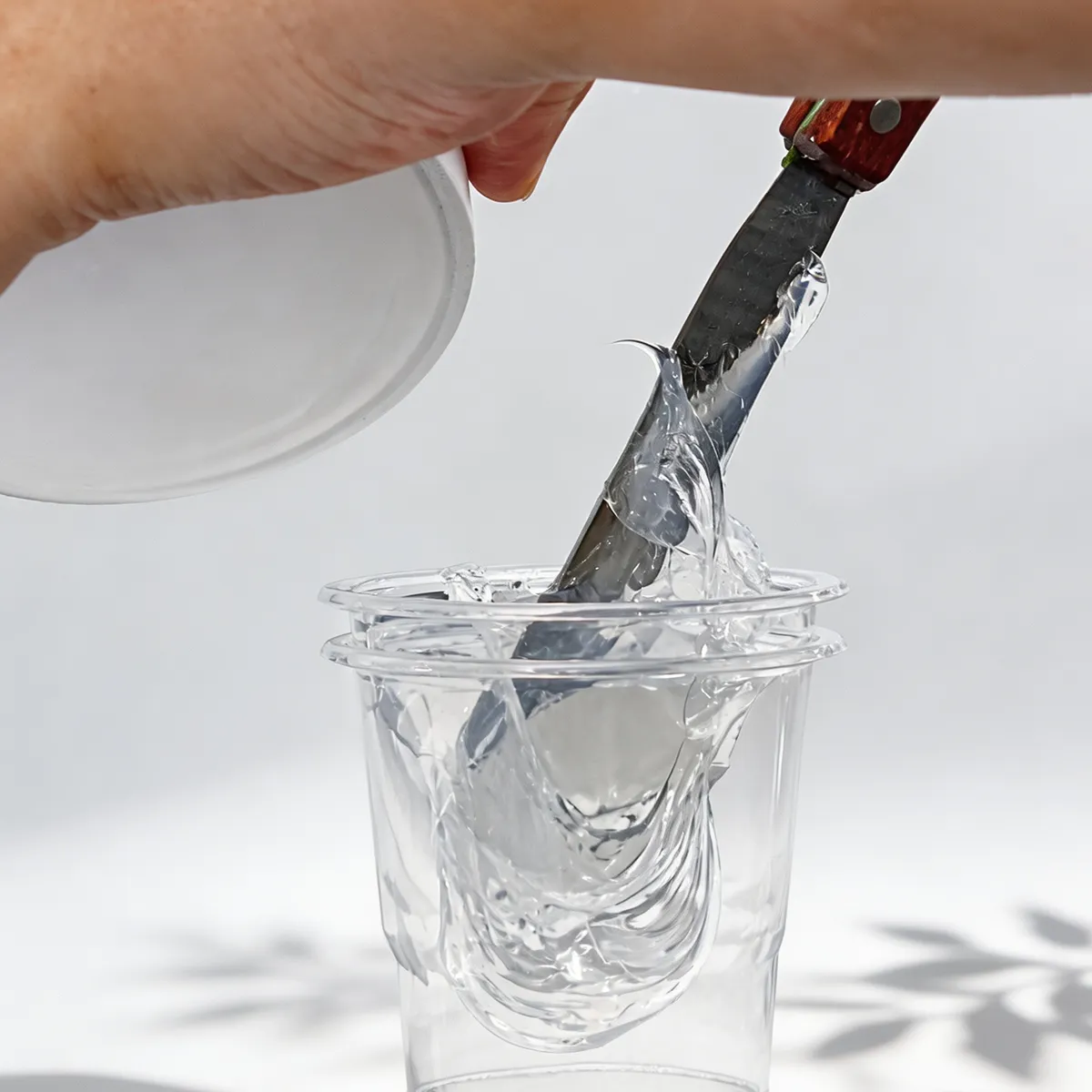

Transparent Screen Printing Silicone
CLT S1703Z Transparent Screen Printing Silicone with rapid thickness build-up and great shinning effect. Soft hand feel, compatible with silicone pigment. Suitable for all silicone printing applications.
Key Specifications:
-01M0CG9FY91R407J15DVYCJQR0.webp)

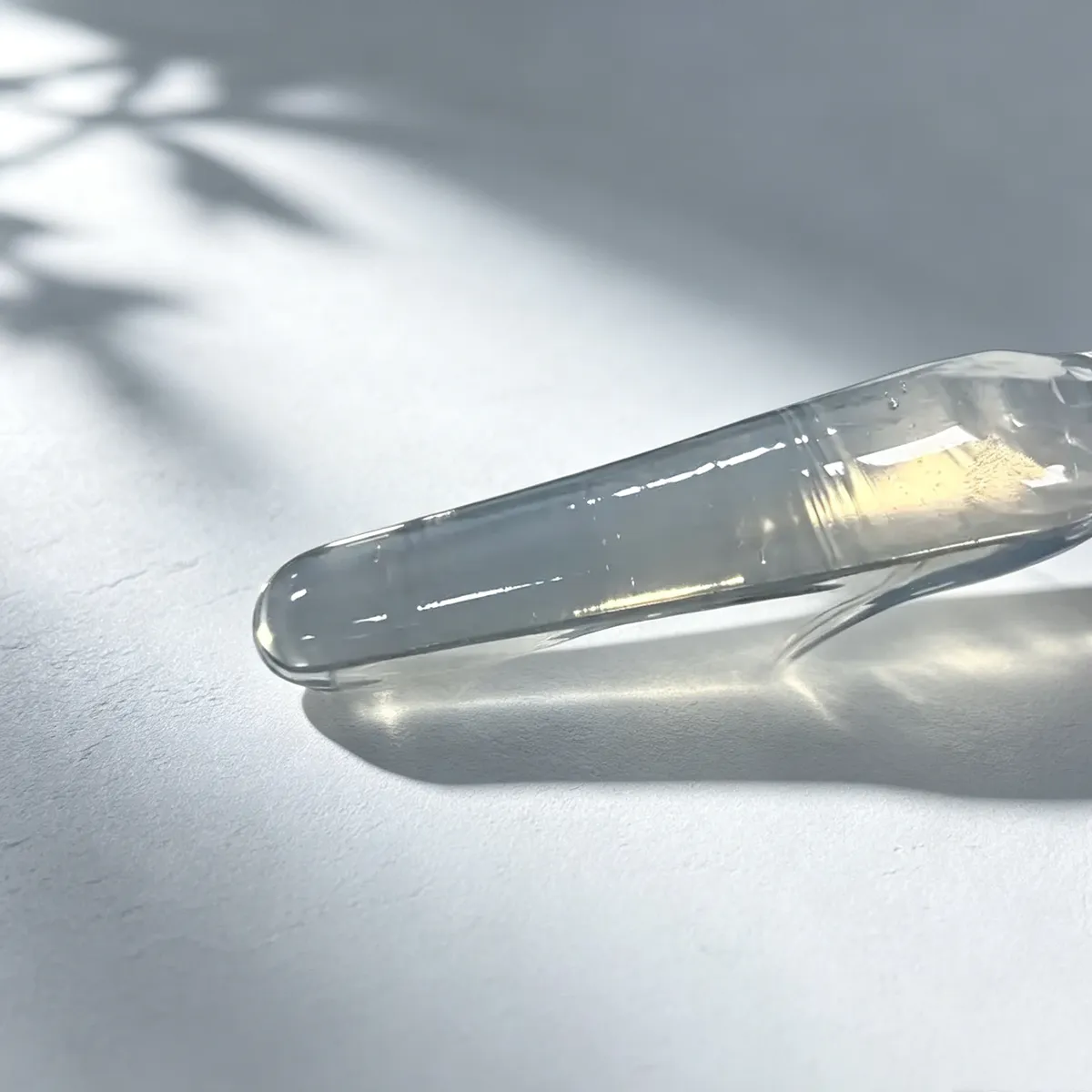

Matte Screen Printing Silicone
