HY-PR3A FULLY AUTOMATIC TURNTABLE THREE-STATION HEAT PRESS MACHINE
Fully Automatic Turntable Three-Station Heat Press Machine Usespneumatic Drive Enables Automatic Rotary Cyclic Operation, With Three Workstations Synchronously Handling Loading, Hot Pressing, And Unloading, Significantly Reducing Idle Time. The Integrated Aluminum Alloy Heating Plate Ensures Precise And Uniform Temperature Control, While The Cnc Panel Allows Adjustable Temperature, Timing, And Pressure Settings, Making It Suitable For Heat Transfer, Embossing, Adhesive Curing, And Other Processes. Ideal For Batch Heat Transfer Applications In Apparel, Textiles, And Signage, It Delivers Stable Pressure, High Transfer Adhesion, And Excellent Consistency In Mass Production.
Technical Specifications | HY-PR3A Fully Automatic Turntable Three-Station Heat Press
The HY-PR3A fully automatic turntable three-station heat press machine combines pneumatic rotary operation, three synchronous workstations, and CNC control for high-efficiency batch heat transfer processing.
Key Features
- Cantilever electric box device, 320-degree rotation, the machine can be operated at any position
- PLC touch screen programmable control technology, powerful system functions, simple and easy to understand
- Manual/semi-automatic/full-automatic conversion function. With record function
- Low-voltage 24V control, the turntable speed is adjustable, and the turntable does not shift during continuous operation
- Using Leisai servo motor, low noise, real fast, stable and accurate

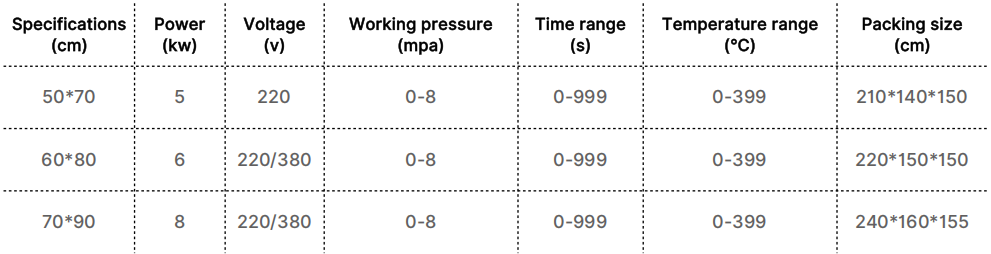

PARAMETER
Ready to Get Started?
For a free technical consultation, quote, samples, and custom specifications on Three-Station, contact us—no obligation.
